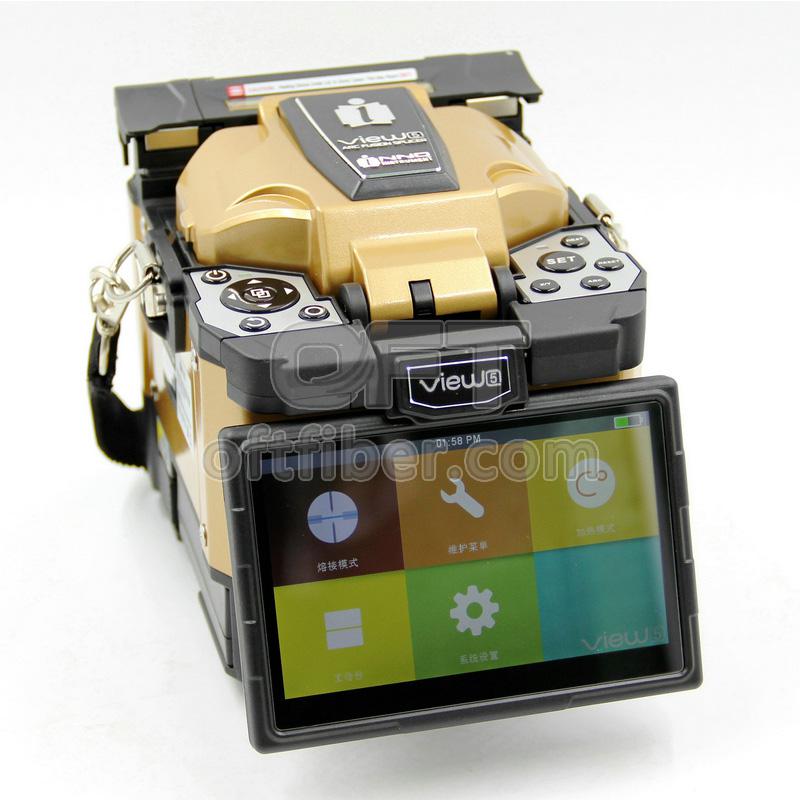

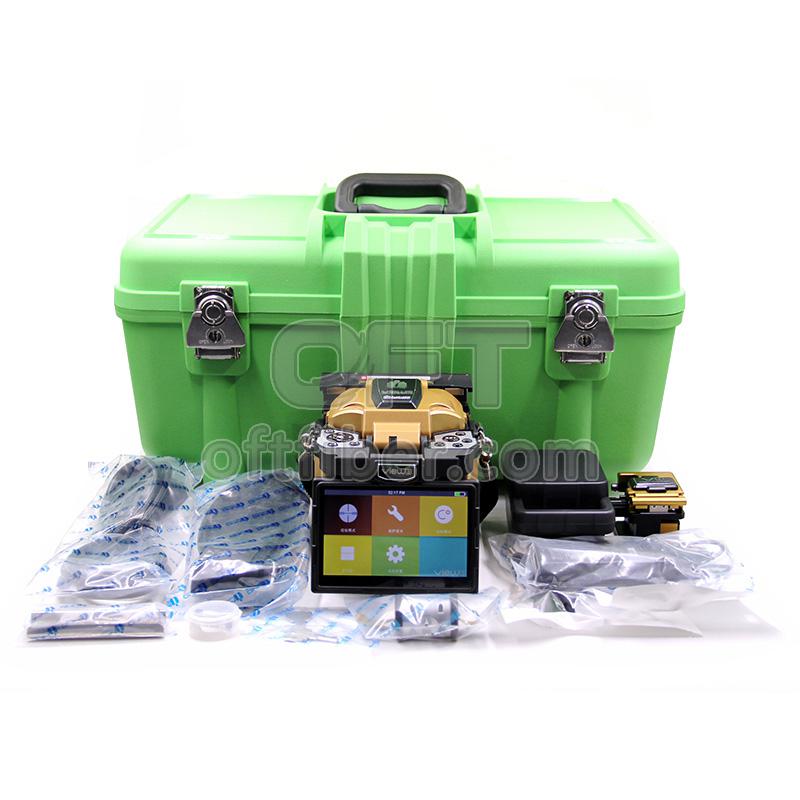

INNO Fusion Splicer View 5

Product description: INNO Fusion Splicer for fiber optic fusion splicing with Core alignment splicing.
INQUIRY

Fusion Splicer View 5

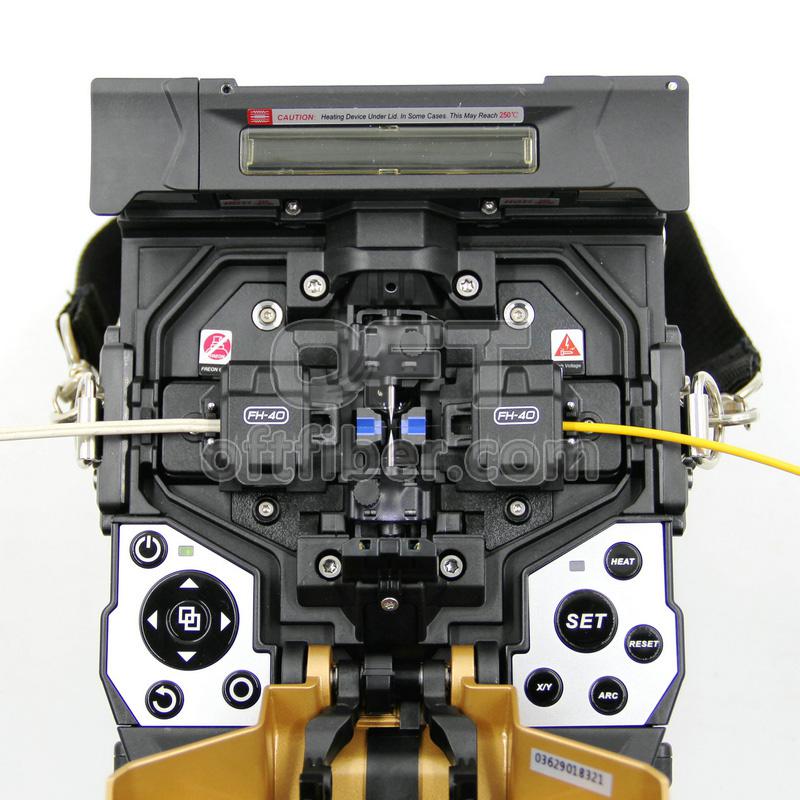

Features

Core Alignment Splicing Method with DACAS

(Digital Analysis Core Alignment System)

The World’s Highest Magnification and Resolution

5” High-Resolution Color LCD Touch Screen

User-friendly Smart GUI

Double Tap to Zoom in & out

Fast Heating Time

Detachable SOC Holder and Heating Oven

High Capacity Battery

3 Bright LEDs and Illuminated Keypads

For Dark Environment

Ceramic Clamp for Improved Durability

Easy to Replace Electrodes

Harsh Weather Conditions Adaptability

1.85kg weight (without battery)

Specifications

Model	View 5
Dimension	147H x 130W x 155D mm
Weight	2.21KG (with battery) / 1.85KG (without battery)
Number of Fiber	Single
Applicable Fibers	SM(G.652&G.657) / MM(G.651) / DS(G.653) / NZDS(G.655)
Compatible Fiber / Cable	0.25~3.0 mm / Indoor Cable
Cleaved Length	Diameter: 0.125~1 mm / Cleave Length: 8~16 mm
Cladding Diameter	80~150 μm
Splicing Mode	Max 128 modes
Heating Mode	Max 32 modes
Typical Splice Loss	SM:0.02dB / MM:0.01dB / DS:0.04dB / NZDS:0.04dB/G.657:0.02dB
Return Loss	>> 60 dB
Lighting	3 White LEDs
Splicing Time	Quick mode : 7 sec / Auto mode : 9 sec
Estimated Splice Loss	Available
Protection Sleeve Length	20~60 mm
Heating Time	FP-03 typical heating time: 13 sec
Results Storage	The last 2000 results
Tension Test	1.96~2.25N
Operating Condition	Operating Altitude: 0~5000m above sea level, 0.95% relative humidity, -10~50°C, Max Wind 15m/s
Storage Condition	0~95% relative humidity, -40~80°C
Display	90° bi-directional view, 5.0” Color High Resolution Display
Fiber View & Magnification	X, Y, XY, X/Y : 520X Magnification
Power Supply	AC Input 100-240V, DC Input 9-14V
No. of Splice Heating with Battery	4200mAh Battery Capacity Typical 170 times (Splice+Heat)
Operating Methods	Button / Touch screen
Automatic Calibration	Automatic arc calibration by air pressure and temperature
Electrode Life	3500 arcs, can be extended by using an electrode grinder
Terminal	USB2.0 / MINI USB
