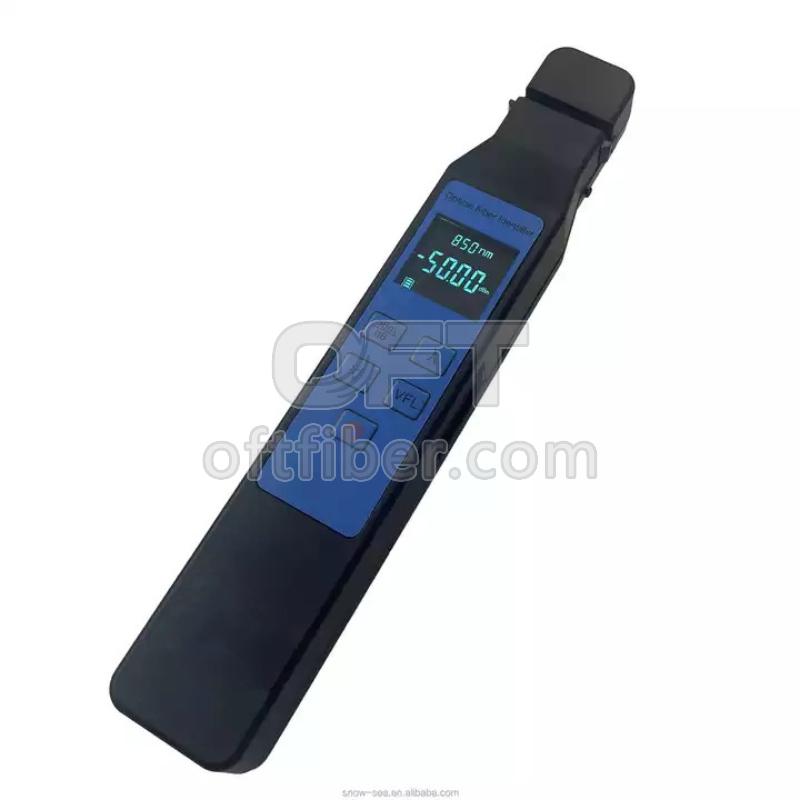

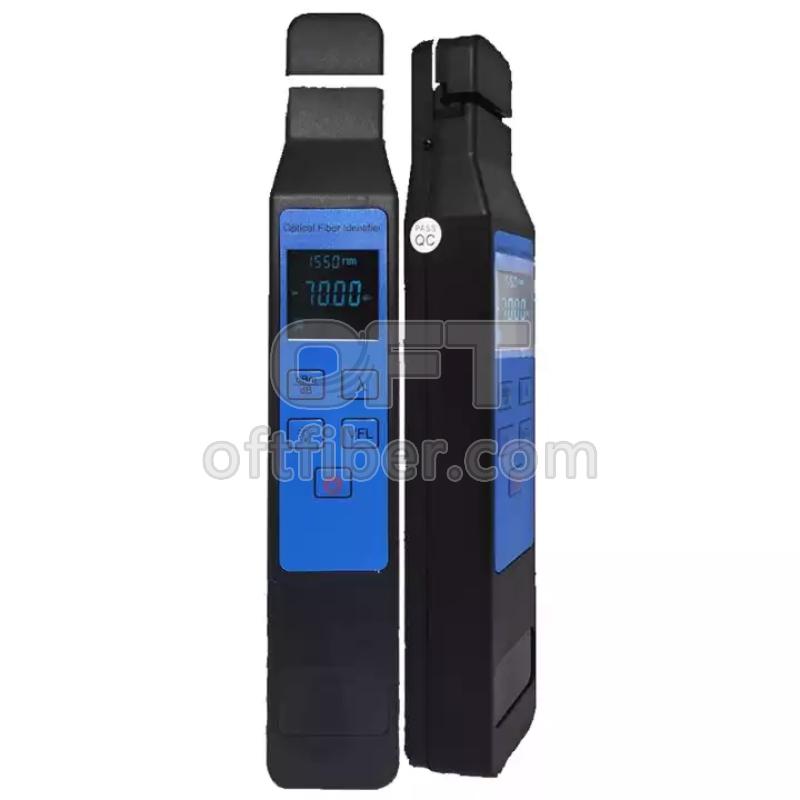

Optical Fiber Identifier OFI-1102C

Product description: OFT Optical Fiber Identifier is for optical maintenance with VFL and OPM functions.
INQUIRY

OFT Optical Fiber Identifier OFI-1102C is an important tool for optical maintenance, which is used for nondestructive fiber identification project. Meanwhile it also has Visual Fault Locator module with fault location function.

Using the macro bending technology on line for nondestructive testing, OFI-1102C can measure the signal direction and power and avoid misoperated resulting in interrupted lines.

Features

TFT color screen
Indicate the signal directions and power in fiber
Indicate the signal presence or absence(Live or dark fiber)
Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning
Displays the relative core power
Don't need to replace adaptor
Lower power indication
Build in VFL function
Build in OPM function

Specifications

Type	OFI-1102C
Identified Wavelength Range	750-1700 nm
Insertion Loss	1.0dB
Fiber Type	＜ 3mm Fiber
Identified Signal Type	270Hz/1KHz/2KHz
Display Type	LED
Detector Type	1mm InGaAs
Minimum detection power	-35dBm(1550nm)
Minimum detection power	-30dBm(1310nm)
OPM part
Wavelength Range(nm)	800~1600
Detector Type	InGaAs
Measurement Range(dBm)	-50~+26
Photo-surface	300um
Uncertainty	±0.15dB
Accuracy	Linear 0.1% or Nonlinear 0.01dBm
Operating Temperature(℃)	-10~+60
Storage Temperature(℃)	-25~+70
Auto-off Time(min)	10
Operating Time(h)	≥130
VFL Part
Center Wavelength	650nm
Output Power	10mW
Alkaline Battery	2*AA
Battery Life	＞ 60H
Operating Temperature	0~+50℃
Storage Temperature	-20~+60℃
