Optical Fiber Identifier OFI-1101C

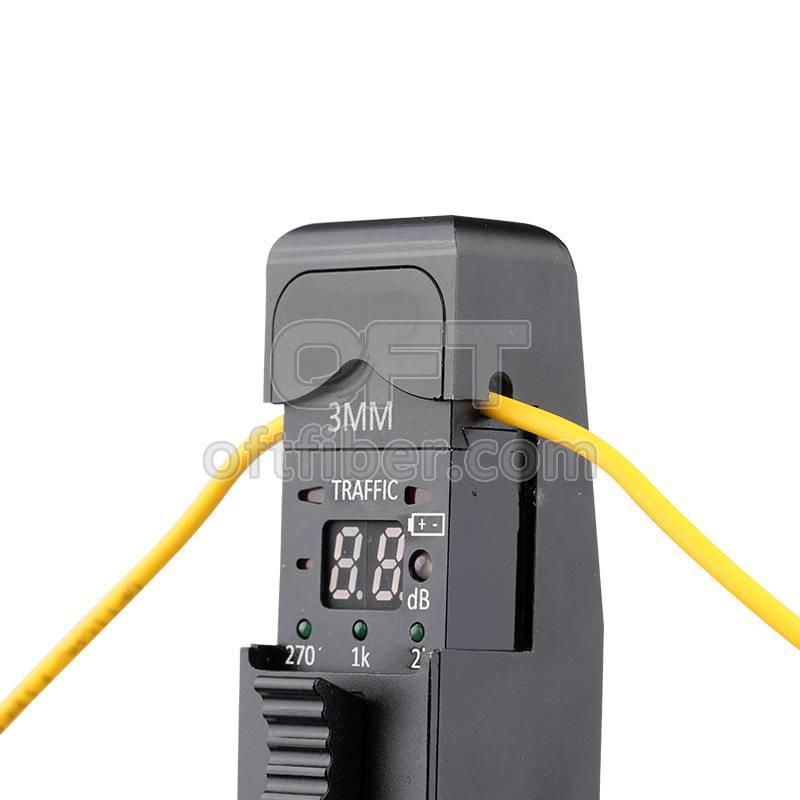

Product description: Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber.
INQUIRY

When the traffic is present,the intermittently audible tone is activated.

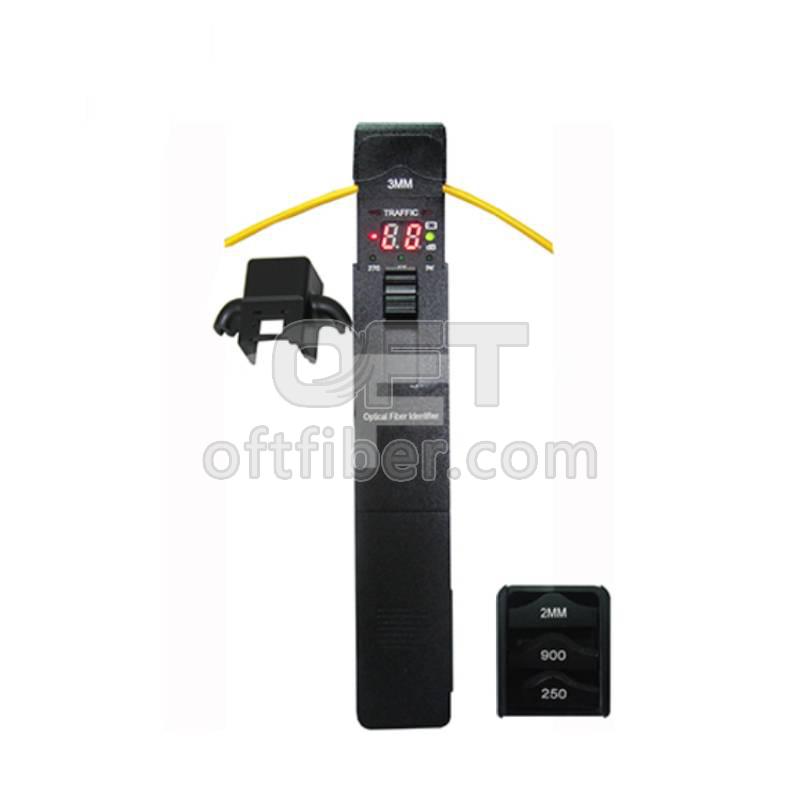

The OFI101C optical fiber identifier also recognize the modnulation like,270Hz,1kHz and 2kHz .When they are used to detect the frequency, the continuously audible tone is activated.There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. The OFI101C optical fiber identifier is powered by a 9V alkaline battery.

Features:

Easy-to-use with “ONE KEY” operation.

Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.

Displays the relative core power

More accurate test with Sunshade

Easy-to-replace adaptors

Durable metal housing and quality construction

Lower power indication

Type	OFI1101C
Identified Wavelength Range	800-1700 nm
Identified Signal Type	CW, 270Hz±5%，1kHz±5%，2kHz±5%
Detector Type	Ø1mm InGaAs 2pcs
Adapter Type	Ø0.25 (Applicable for Bare Fiber)，Ø0.9 (Applicable for Ø0.9 Cable )
	Ø2.0 (Applicable for Ø2.0 Cable ), Ø3.0 (Applicable for Ø3.0 Cable )
Signal Direction	Left & Right LED
Singe Direction Test Range (dBm, CW/0.9mm bare fiber)	-46~10(1310nm)
	-50~10(1550nm)
Signal Power Test Range (dBm, CW/0.9mm bare fiber)	-50~+10
Signal Frequency Display (Hz)	270, 1k, 2k
Frequency Test Range (dBm, Average Value)	Ø0.9, Ø2.0, Ø3.0	-30~0 (270Hz,1KHz)
		-25~0 (2KHz)
	Ø0.25	-25~0 (1KHz,2KHz)
		-20~0 (2KHz)
Insertion Loss(dB, Typical Value)	0.8 (1310nm)
	2.5 (1550nm)
Alkaline Battery(V)	9
Operating Temperature(℃)	-10－+60
Storage Temperature(℃)	-25－+70
Dimension (mm)	196X30.5X27
Weight (g)	200
