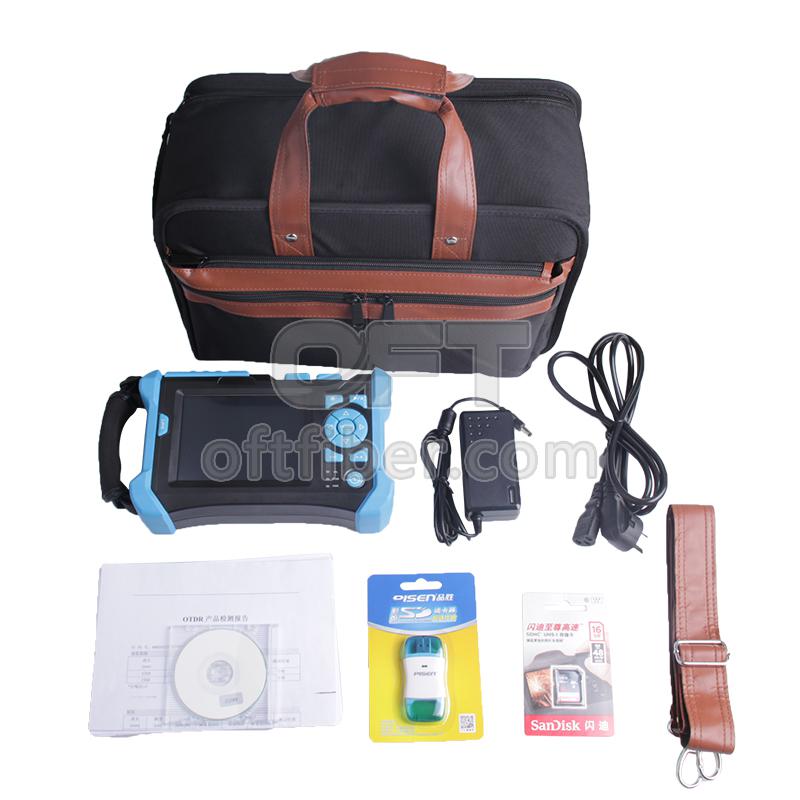

Palm OTDR(Optical Time-Domain Reflectometer) OFT-60

Product description: The OFT-60 Series OTDR,which meet the needs on the wide range of measurement by FTTx,Metropolitan Area Network,Backbone Network and other optical networks.
INQUIRY

OTDR OFT-60：

Technical Specifications

Wavelength (nm)

850/1300

1310/1550

1310/1490/1550

1625

Dynamic range (dB)2

23/21

32/30

38/36

32/30/30

344

365

Pulse width (ns)

5、20、40、80、160、320、640、1280

5、20、40、80、160、320、640、1280、2560、5120、10240、20480

Event blind zone (m)3

Attenuation blind zone (m)3

13m

Linearity (dB/dB)

±0.05 dB/ dB

Loss threshold (dB)

0.05

Loss resolution ratio (dB)

0.01

Sampling resolution ratio (m)

0.125 to 8

Sampling point

32K

Distance uncertainty (m)

±(1 m + 5×10-5× distance + sampling interval)

Distance scope (km)

0.3 to180

Typical real-time refreshing duration (s)

0.2

Memory capacity of trace

SD Card (4G), > 10000 pieces

Duration of measurement

Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable

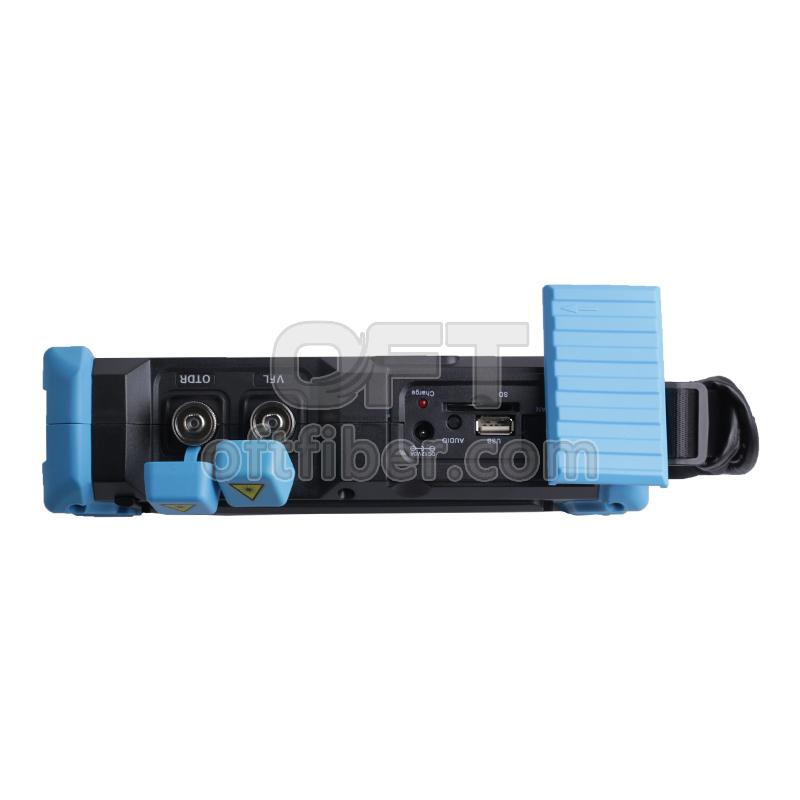

General specification

Interface category

Dimension (H×W×D)

150×235×66

Optical interface

FC/UPC (PC, and APC are selectable)

Weight

1.5kg

Data interface

USB interface, SD card interface

Temperature

Running temperature -10℃ to 50℃

Memory temperature -40℃ to 70℃

Visible failure orientation VFL

Relative humidity

0% to 95% (non condensation)

Wavelength

650nm

Power supply

Lithium battery; continuing working duration ≥ 8 hours

Output power (dBm)

≥-3

Warranty period

12 months

Maximum testing distance

3km

Remarks: 1. The technical specification describes the ensured performance of the instrument when using typical PC model connector to measure. Without considering the uncertainty caused by optical fiber refractivity.

2. Dynamic range is the data measured under the condition of the maximum pulse width and 3 minutes of average time. Dynamic range is the data measured under the condition of 180km/20480ns/3min.

3. Measuring conditions of blind zone: reflection event is within 4Km, reflection strength < -35dB. Measured by the minimum pulse width.

4. Dynamic range measured when there is filter.

5. Dynamic range measured when there is no filter.

OFT-60 OTDR Meter：

Automatic Measurement Mode: Only by selecting the measurement wavelength, the measurement parameters are automatically set, and the trace data is automatically saved and automatically analyzed.

Multi-wavelength Measurement Mode: In the parameter setting, the wavelength can be automatically switched into the multi-wavelength measurement mode. Under this mode, the analysis can be achieved on the attenuation state of the same fiber section under different wavelengths.

Trace Fixing Function: It can achieve the same-screen comparison and display of one trace with another real-time trace or the trace under the average measurement, which is very useful for the installation of multi-core fiber or the checking of the aged fiber in the optical fiber network already been installed.

Multi-wavelength Analysis Function: It can achieve the comparison, display and analysis functions of any trace file.

FTTx online testing, able to identify the splitter and the fiber’s end.

Large-capacity lithium-ion rechargeable battery, with the long standby time over 8 hours.

Bellcore file format (.sor), with the storage of greater than 10,000 traces.

Communication Light Detection: It can effectively protect the test instrumentation and communication equipments.

Connection State Detection: To promptly know the connection status of the instrumentation and the fiber for test.

The Switching of Measurement Mode: Through the shortcut key operation, it can achieve the flexible switching of real-time measurement mode and average measurement mode.
