Mini Pro OTDR OFT-50S/40S

Product description: OTDR Reflectometer SM 1310nm/1550nm 24dB/22dB with OPM OLS VFL
INQUIRY

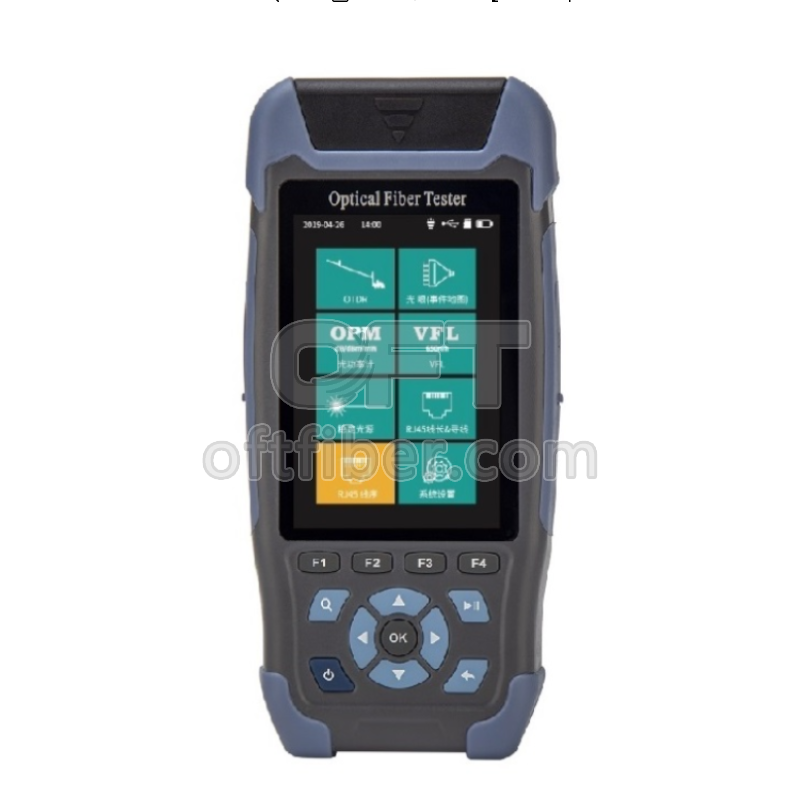

Mini-Pro OTDR

9 Functions in 1 device

1) OTDR

2) EVENT MAP (similar to EXFO iLOM)

3) Optical Light Source

4) Optical Power Meter

5) Visual Fault Locator

6) RJ45 Ethernet Cable Sequence

7) Ethernet Cable Distance

8) Ethernet Cable Tracker

9) LED Light

Technical Specifications:

Model	OFT-40S		OFT-50S
Wavelength	1310nm/1550nm±20nm
Fiber Type	G.652
Dynamic Range	22dB	24dB/22dB
Event Blind Zone	3m
ATT Blind Zone	8m
Test Range	500m~60km
Pulse Width	3ns~10us
Ranging accuracy	±（1m+ Sampling interval +0.005％×Test distance）
Loss accuracy	±0.05dB/dB
Sampling Points	16k~128k
Sampling resolution	0.05m~8m
Reflection accuracy	±3dB
Data Storage	Internal：≥600；External：TF Card
Laser Safety Level	Class Ⅱ
File format	SOR Standard file format
Connector	FC/UPC（Interchangeable SC、ST）
OPM
Wave Range	800nm~1700nm
Interface Type	Universal Joint FC/SC/ST
Test Range	-50dBm～+26dBm
Uncertainty	±5%
Frequency Identification	CW/270/330/1k/2kHz
Calibration wavelength	850/980/1300/1310/1490/1550/1625/1650nm
LS
LD Type	FP-LD
Wavelength	1550nm±20nm	1310nm/1550nm±20nm
Output Power	≥-5dBm
Modulation Frequency	270/330/1k/2kHz
Stability	CW，±0.5dB/15min （Test after 15 minutes of preheating）
Connector	FC/UPC（Interchangeable SC、ST）
VFL
Wavelength	650nm±20nm
Output Power	≥10mW
Mode	CW/1Hz/2Hz
Connector	FC/SC/ST
RJ45 Cable Length Measurement
Test Range	300m
Other Parameters
Display	3.5 inch Color LCD
Data Interface	Micro USB
External storage	TF Card
Power Supply	Polymer Li-Battery：3.7V，4000mAh Adapter：5VDC，2A
Battery Life	Standby＞20h；Measuring time＞12h
Operating Temperature	-10℃～+50℃
Storage Temperature	-40℃～+70℃
Relative Humidity	0～95％Non Condensing
Size	173mm×82mm×37mm
Weight	≤350g
Functions: Blue，OTDR/EVENT MAP/OPM/LS/VFL/RJ45 Sequence/RJ45 Cable Tracker(Additional purchase detector)/RJ45 Line length/Flashlight

Note:

1Test temperature is 25℃+2℃, maximum pulse width, the average time is more than 3 minutes.

2Test conditions of Event Blind Zone are minimum range, minimum pulse width, reflection loss of optical fiber end (> 45dB), typical value.

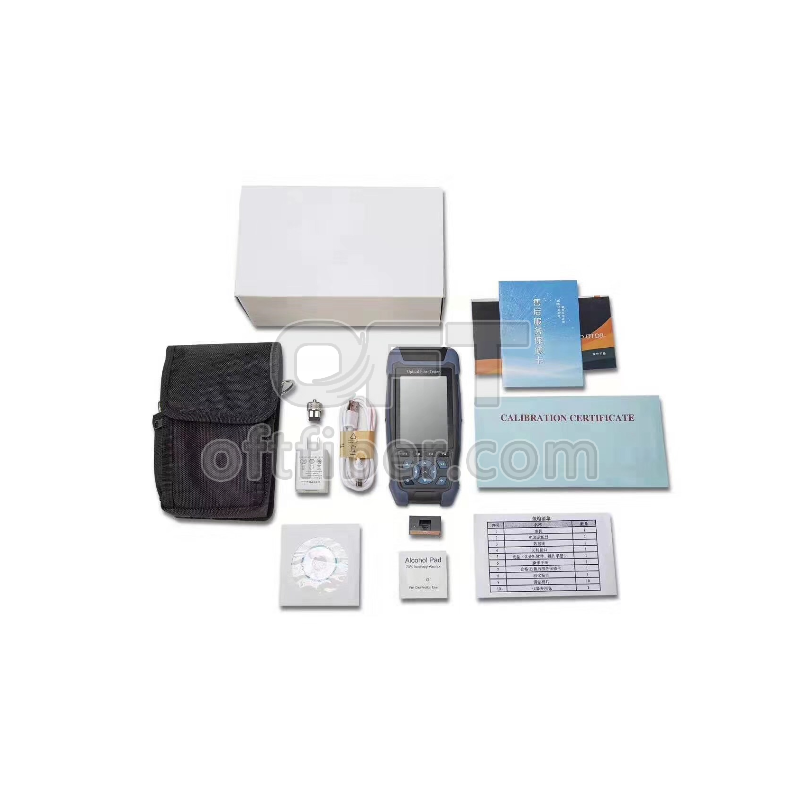

Configuration List

NO.	NAME	QUANTITY	Remarks
1	Host	1
2	Adapter	1
3	Data Line	1
4	CD-ROM(Analysis software/User’s Manual)	1
5	User’s Manual	1
6	SC/UPC	1
7	Qualification Certificate/ Service Guarantee Card	1
8	Calibration Certificate	1
9	Clean Cotton Slices	10
10	Instrument Backpack	1
