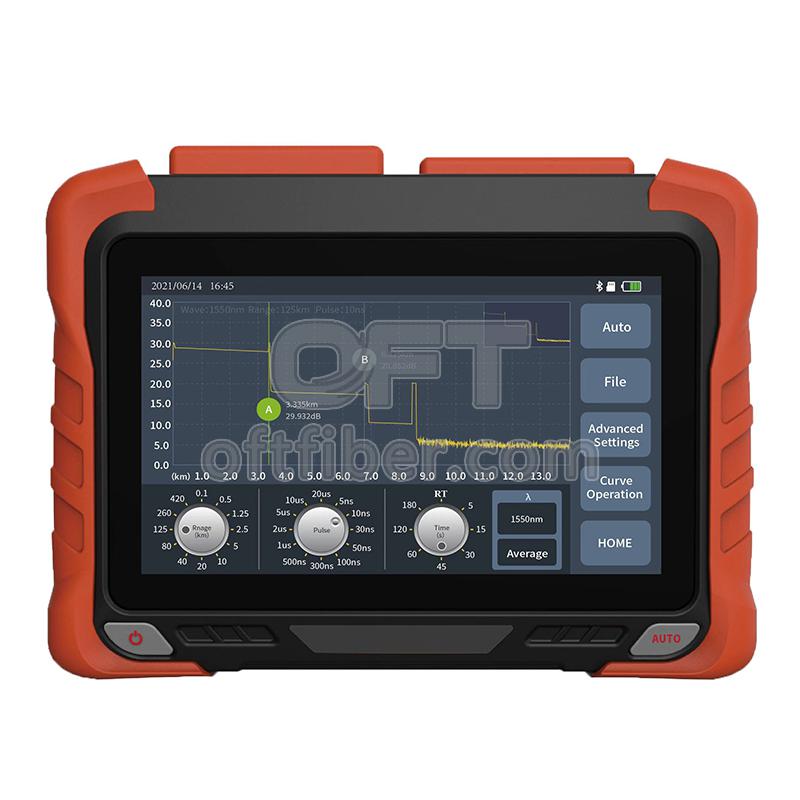

OFT-100S series high-performance OTDR

Product description: OFT offers OTDR,OFT Tester,Optical Power Meter,Laser Source,Fiber Identifier,Optical Talk Sets,VFL for fiber optic cable testings.
INQUIRY

Summary

OFT-100S series OTDR adopt 7 inch capacitance touch screen, which integrates 9 modules. With excellent intelligent hardware and software design, the accuracy of short fiber test and automatic test is higher. . It is equipped with rich Ethernet test (Ping/PPOE, etc), support APP control.

OFT-100S series is used to test the optical fiber length, loss and connection quality, and used in the engineering construction, link maintenance test, They are mainly used in urban trunk, bone trunk network and metropolitan area network.

Functions

OTDR/VFL/LS/OPM/Event Map/End Detection/Optical Loss Test/Ethernet test/Remote test/File management

Technical specifications

Model

OTDR OFT-100S

SM1

SM2

Type

SM/MM

Wavelength

1310nm

/1550nm

1310nm

/1490nm

/1550nm

1310nm

/1550nm

/1625nm

1310nm

/1550nm

/1650nm

1310nm

/1490nm /1550nm /1625nm

850nm/

1300nm

850nm

/1300nm

/1310nm

/1550nm

Max Dynamic

Range（dB）

32/30

35/33

38/36

42/40

45/43

/30

/35

/30

/35

/30

/35

26/28

/28

/35

/33

/28

/37

/35

Event Blind Zone

0.8m

0.5m

0.8m

0.5m

0.8m

0.5m

0.8m

0.5m

ATT Blind zone

3.5m

Test Range

100m/500m/1.25km/2.5km/5km/10km/20km/40km/80km/125km/260km/420km

Pulse Width

3ns/5ns/10ns/30ns/50ns/80ns/100ns/200ns/300ns/500ns/800ns/1us/2us/3us/5us/8us/10us/20us

Range Accuracy

±（0.75m+ Sample interval +0.0025％×Test distance）

Loss Accuracy

±0.03dB/dB

Sample Points

≥256k

Sample Resolution

0.015m~16m

Reflection Accuracy

±2dB

Loss Resolution

0.001dB

Loss Threshold

0.01dB

File Format

SOR Standard File Format

Loss Analysis Mode

4-point method /5-point method

Laser Safety Level

Class Ⅱ

Refresh Rate

4Hz (Typ.)

Data Storage

Internal storage：2GB（20,000 curves）；External storage：64GB

Connector

FC/UPC（Interchangeable SC、ST）

Data Interface

USB-A、Type-C port、RJ45 LAN 10M/100M bit/s

OPM

Wavelength range

800nm~1700nm

Connector

Universal FC/SC/ST

Test scope

-50dBm～+26dBm/-70dBm～+6dBm

Uncertainty

±5%

Calibration wave

850nm/980nm/1300nm/1310nm/1490nm/1550nm/1625nm/1650nm

Wavelength

Consistent with OTDR output wavelength

Laser Type

FP-LD

Output power

≥-5dBm

Stability

CW，±0.5dB/15min（Test after 15 minutes of boot-up preheating）

Mode

CW/270/330/1kHz/2kHz

Connector

FC/UPC（Interchangeable SC、ST）

VFL

Wavelength

650nm±20nm

Output power

≥10mW

Mode

CW/1Hz/2Hz

Connector

FC/UPC（Interchangeable SC、ST）

The Optical Loss Test index refers to the above light source and optical power meter index.

Others

Display

7 inch color LCD + touch screen, resolution 800×480

Power supply

AC/DC adapter：Input：100V～240V，50/60Hz；Output：5V/3A, 9V/2A, 12V/1.5A；Lithium battery：3.7V，10400mAh

Work temperature

-10℃～+50℃

Storage temperature

-40℃～+70℃

Relative humidity

0～95％，Non Condensing

Weight

≤1.2kg

Size

215mm×160mm×50mm

NOTE：①Test ambient temperature is 25℃±2℃, the maximum pulse width, the average time is more than 180s.

②Test conditions of event blind zone are min range, min pulse, reflection loss of optical fiber end surface (> 45dB), typical value.

Configuration List

NO.	Name	Quantity	Remarks
1	Host	1	Including battery
2	AC/DC adapter	1
3	U-disk (including analysis software, instructions)	1
4	Data line	1
5	OTDR SC adapter	1
6	OPM SC adapter	1
7	User's Manual	1
8	Calibration Certificate	1
9	Qualification Certificate/After-sales Service Guarantee Card	1
10	Clean cotton slices	10
11	Leather knob	1
12	Instrument backpack (with straps)	1
