VFL-Visual Fault Locator

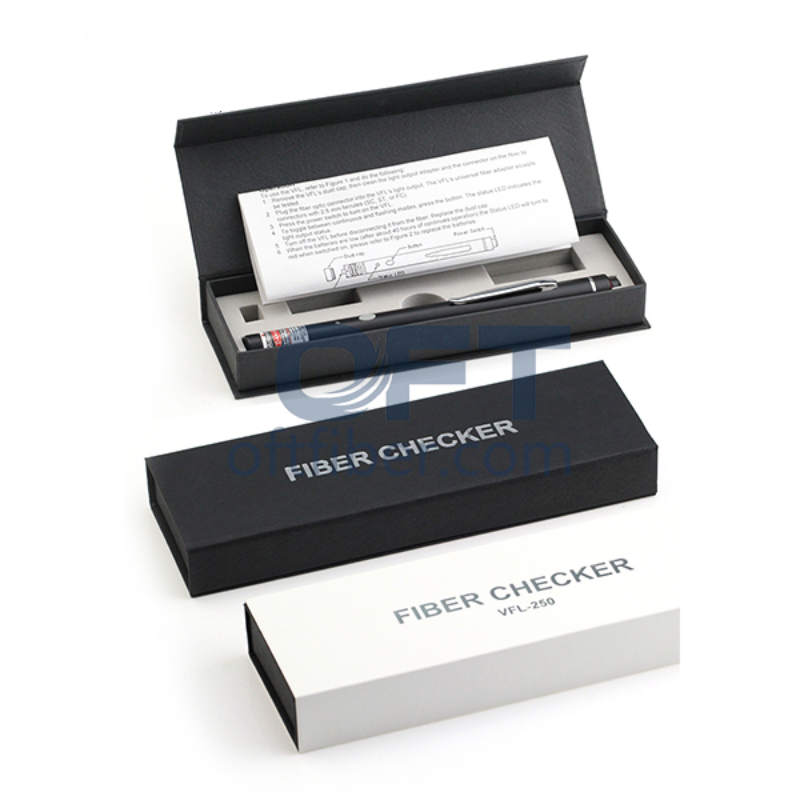

  • Fiber Checker Visual Fault Locator VFL-250
  • Fiber Checker Visual Fault Locator VFL-250
  • Fiber Checker Visual Fault Locator VFL-250
Fiber Checker Visual Fault Locator VFL-250Fiber Checker Visual Fault Locator VFL-250Fiber Checker Visual Fault Locator VFL-250

Fiber Checker Visual Fault Locator VFL-250

  • Product description: VFL-250 Visual Fault Locator is for fiber tracing,fiber routing and continuity checking in optical network.
  • INQUIRY

Visual Fault Locator VFL-250:


It includes:

Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.

Finding the faults of OTDR dead zone

End-to-end visual fiber identification

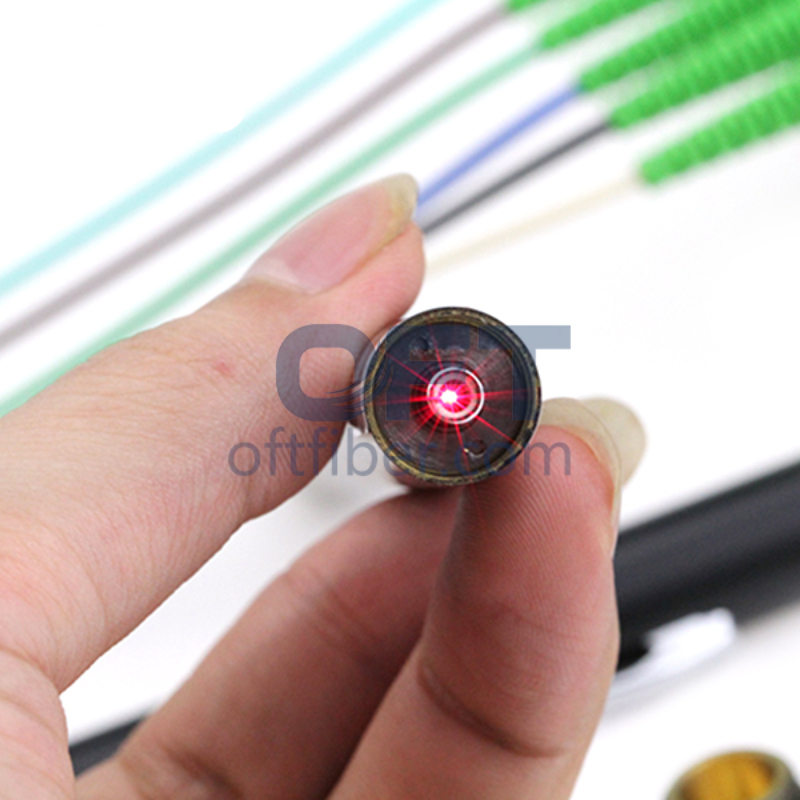

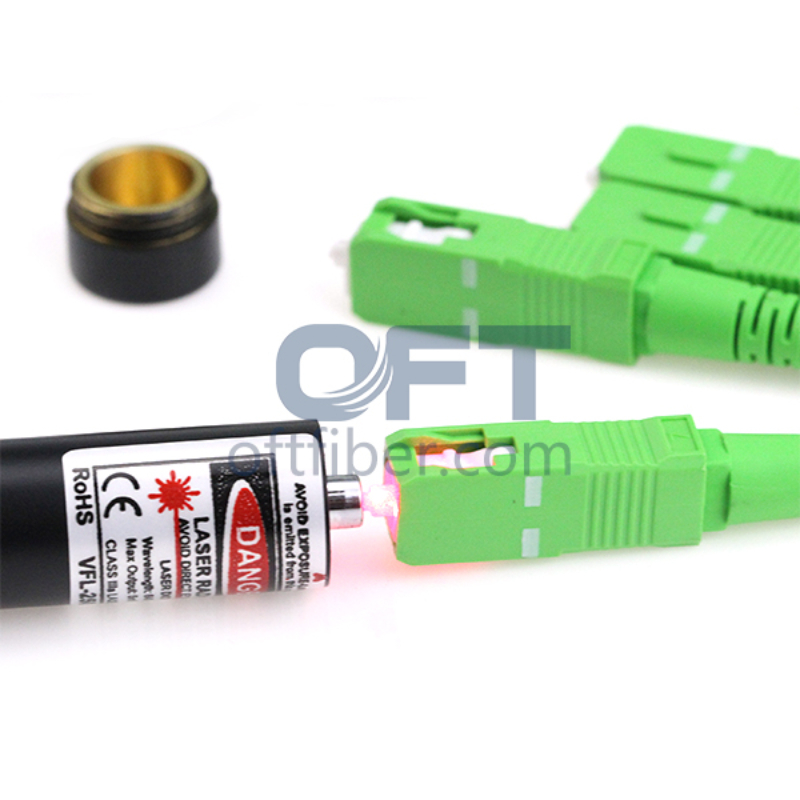

- Visual Fault Locator is equipped with a 650-nm visible laser diode,can be operated in continuous or pulse modes for clear noticeable results

- One green LED indicator shows the operating mode.

- Power switch on the end for battery on / off

- Push button operate CW / Mod. (2.5 Hz frequency) / pause

- Clip pocket-size pen design

- Protective cap for extra protection.

Specifications:

Central Wavelength 650 +/- 10 nm

Output Power 1mW into Single-mode fiber

Spectral Width < 10 nm

Transmission CW or 2.5 Hz pulse

Batteries 2 x AAA Alkaline batteries

Operating Temp. 0 - 50 °C

Detecion Distance < 6 Km

Dimension / Weigth 13.5 mm X 170 mm / 88 g

Light Source Class 3A laser diode
Option Adapter Type , ( AC Adapter , DC 3V )
