  • Fiber Checker Visual Fault Locator VFL-360

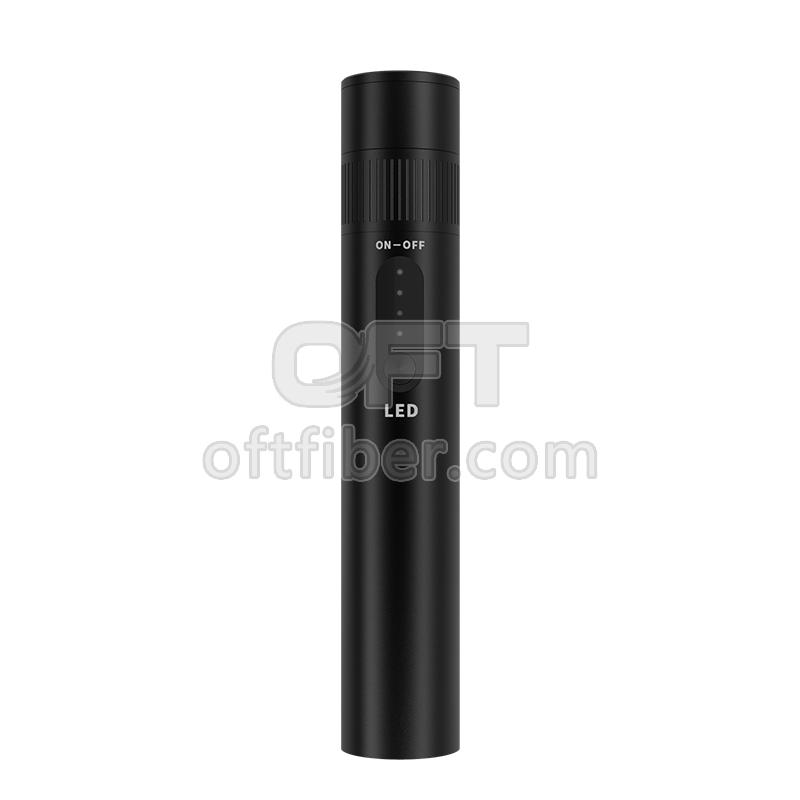

Fiber Checker Visual Fault Locator VFL-360

Fiber Checker Visual Fault Locator VFL-360

  • Product description: The Pentype VFL is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical network.
  • INQUIRY

Visual Fault Locator VFL-360:

The Visual Fault Locator VFL-360 uses a 650nm semiconductor laser as the light-emitting device and is driven by a constant current source. It emits stable red light and enters multi-mode and single-mode fiber after connecting with the optical interface to realize the function of fiber fault detection. It is an indispensable tool in fiber engineering construction, fiber network maintenance, optical device production and research.
Features:
Adopt a new artificial body design; adopt a rotary automatic lifting laser head and turn on function; support alkaline batteries, power banks, computers, adapters, lithium batteries, multiple power supply methods; support lighting functions, convenient for dark environments such as the field, computer room, and night Check line construction.

Specification:

Model NO.

VFL-360-05/

VFL-360-10/

VFL-360-15/

VFL-360-20/

VFL-360-30

Output wavelength

650nm

Interface Type

2.5mm universal adapter

Quiescent Current

≤15uA

≤15uA

≤15uA

≤15uA

≤15uA

Working current

≤40mA

≤140mA

≤150mA

≤160mA

≤170mA

Battery life

≥40H

≥12H

≥12H

≥11H

≥11H

Charging voltage

5V

5V

5V

5V

5V

Recharging current

≤600mA

≤600mA

≤600mA

≤600mA

≤600mA

Charging time

≤5H

≤5H

≤5H

≤5H

≤5H

Type of battery

18650 lithium battery

Battery capacity

1800mA

Product Size(mm)

130*27

Operating temperature(℃)

-20 ~ +60(No condensation)

Storage temperature(℃)

-40 ~ +85

Package Size(mm)

165*75*34

Net weight(g)

≈96

Gross weight(g)

≈100
