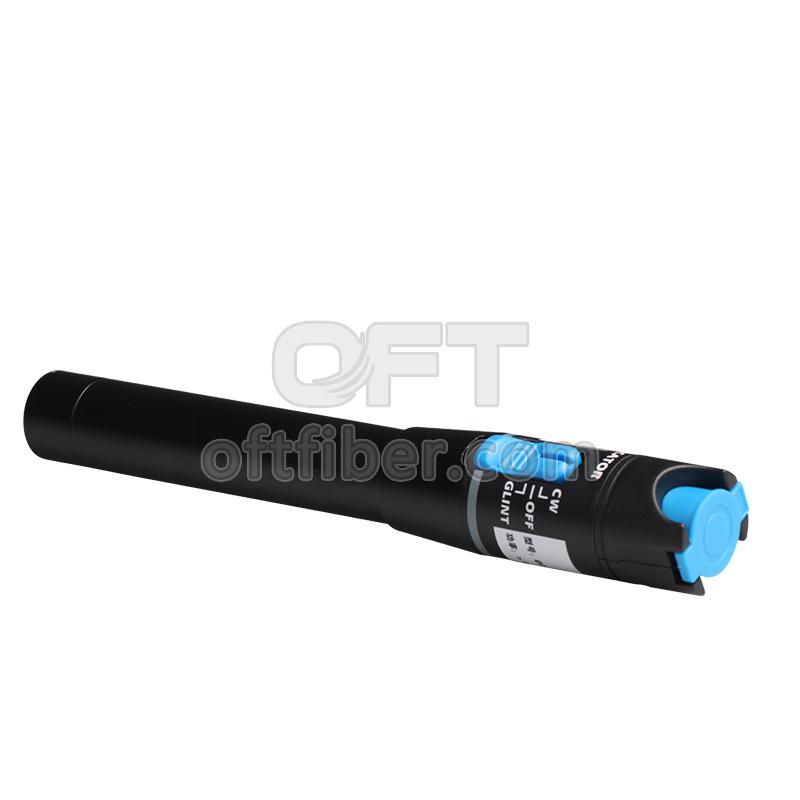

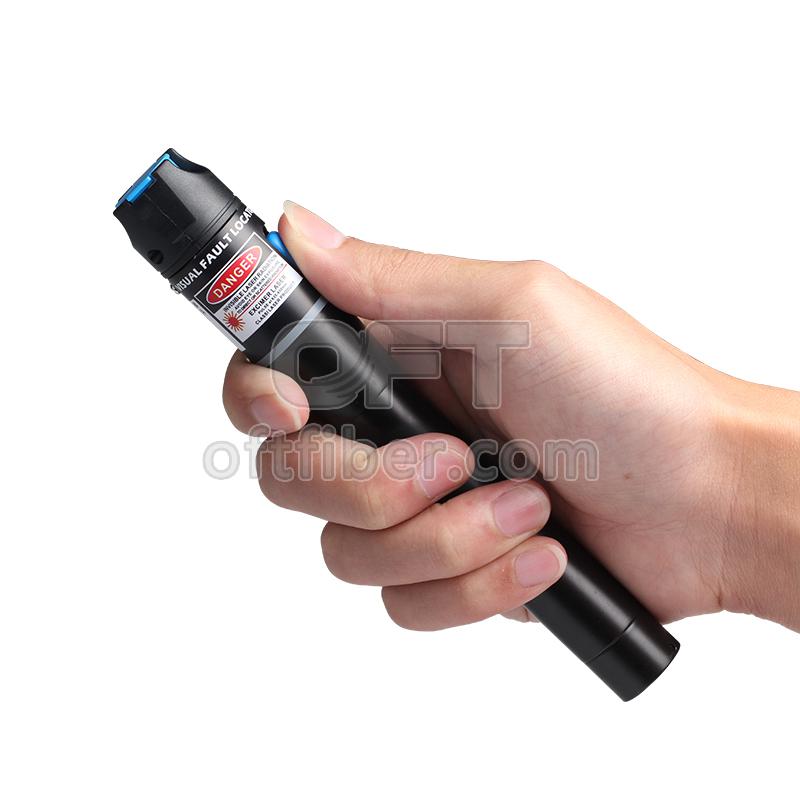

Fiber Optic Visual Fault Locator VFL-690
The Pentype VFL is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical network. It includes:
Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR dead zone
End-to-end visual fiber identification
FEATURES:
●Bright red laser at 650nm
●Pulsed and CW operation
●50 hours of operation(typical)
●Standard AA alkaline batteries
●Rugged and weatherproof design
●2.5mm universal connector
●One-year warranty and recommended calibration
interval
GENERAL SPECIFICATIONS:
|
Type |
VFL-690 |
|
Wavelength（nm） |
650 |
|
Optical Connector |
FC/SC/ST |
|
Ouput Power(mw) |
1,10,20,30(mW) |
|
Modulation Frequencies |
CW、2Hz |
|
Power Supply |
AA 1.5V(2pcs batteries) |
|
Fiber Type |
SM、MM |
|
working time(h) |
60 hours |
|
Operating Temperature(℃) |
-10～+50 |
|
Storage Temperature(℃) |
-20～+70 |
|
Weight(g) |
240g（include batteries） |

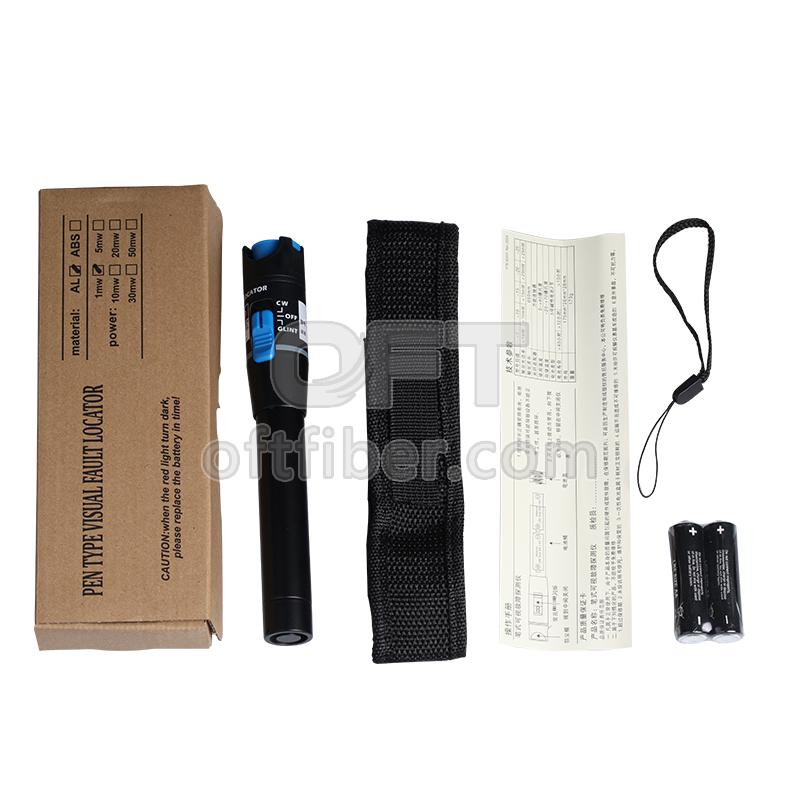

ACCESSORIES:
|
Standard |
Carrying bag |
1 |
|
Quick reference guide |
1 |
|
|
2.5mm universal connector |
1 |
|
|
Certificate of Calibration |
1 |
|
|
Optional |
1.25mm universal connector |
1 |
