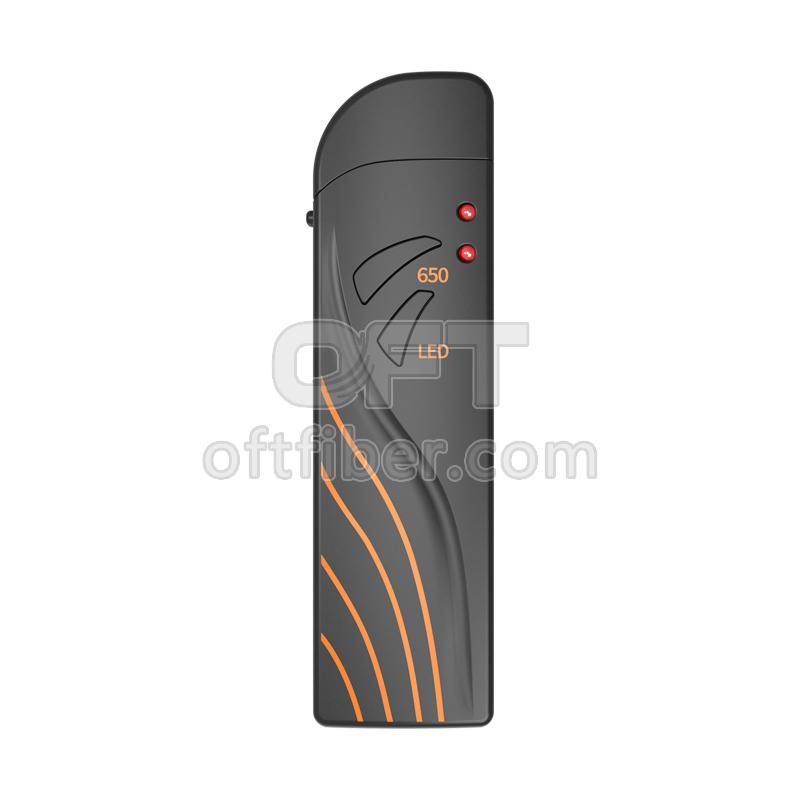

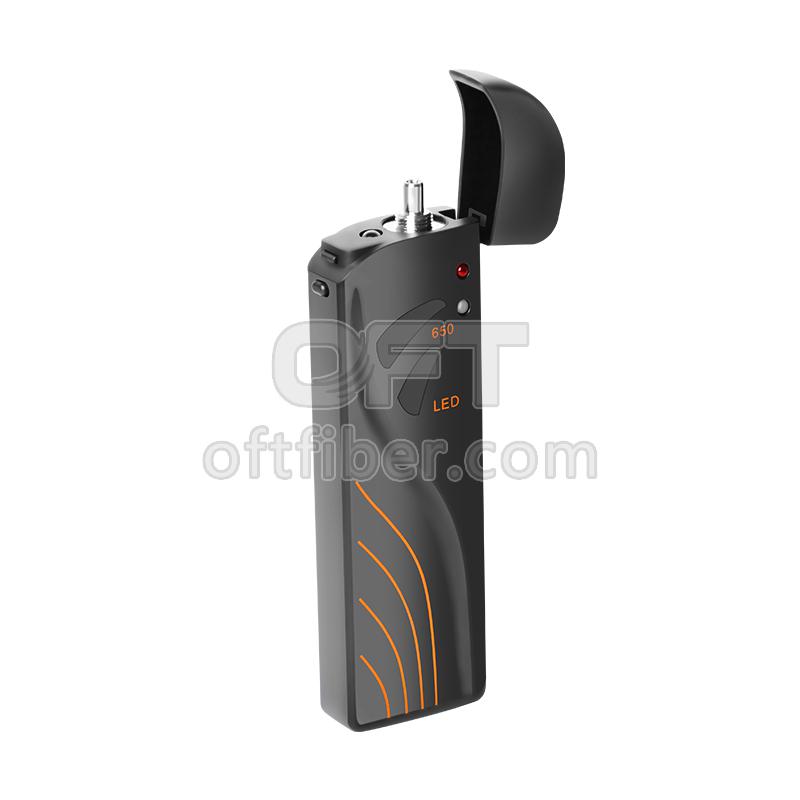

VFL-Visual Fault Locator

  • Visual Fault Locator Mini Laser Source VFL-350
  • Visual Fault Locator Mini Laser Source VFL-350
Visual Fault Locator Mini Laser Source VFL-350Visual Fault Locator Mini Laser Source VFL-350

Visual Fault Locator Mini Laser Source VFL-350

  • Product description: VFL-350 Visual Fault Locator is for fiber tracing,fiber routing and continuity checking in optical network.
  • INQUIRY

Visual Fault Locator VFL-350:

The red light VFL-350 is a 650nm semiconductor laser is used as light emitting device,constant current source drive.The light source emits stable red light , interface into single mode and multimode optical fiber,and the function of fiber fault detection is realized.It is an indispensable tool for optical fiber engineering construction, optical fiber network maintenance, optical device production and research .

Adopt a new human body design;

The pressure type cover is convenient for construction personnel operation;

Support alkaline batteries, rechargeable batteries, computers, adapters, lithium battery power supply modes;

Support automatic shutdown function, prevent error operation to open drain power;

Support the lighting function, convenient in the field,  computer room, night of dark environment to check the line construction.

Technical data:

Model

VFL-350-1

VFL-350-10

VFL-350-15

VFL-350-20

VFL-350-30

Output power

>1mW

>10mW

>15mW

>20mW

>30mW

output wavelength

650nm

interface type

2.5mm general purpose adapter

working temperature

-20~+60℃

Storage temperature

-40~+85℃

Battery Type

The 2 section No. 7 alkaline battery or lithium battery(apolegamy)

operate time

>24h

>12h

>10h

size

125mm*35mm*17mm

weight

38g
